Systech Illinois’s innovative testing systems include oxygen, gas, and moisture analysis instruments – which adhere to relevant industry standards, and are designed to solve your gas, oxygen, and moisture analysis issues. Our leading headspace and permeation instruments can be used to ensure integrity across a whole host of packaging types with packaging across the worlds of plastic, food, pharmaceutical, medical, and many more. providing you with equipment that guarantees accurate and repeatable results.
- Gaspace Advance Micro
- AquaSense 7101 Water Vapor Permeation
- Lyssy L80-6000 Water Vapor Permeation Analyzer
- 8101e OxySense® Oxygen Transmission Rate Analyzer
- GS6000 Headspace Analysers
- PM700 Process Oxygen Analysers
- MM500 Moisture Detector for use in process gas analysis
- EC92DIS ATEX Portable Oxygen Analyzer
- EC91 ATEX o2 analyzers
- EC9031 Oxygen Deficiency Monitors
- EC900 Process Oxygen Analyser
- Systech Illinois ZR800 Oxygen Analyzers
- Systech Illinois Gaspace Advance Head Space Analyzers
Gaspace Advance Micro
The Gaspace Advance Micro oxygen (O2) and carbon dioxide (CO2) headspace gas analyzer is ideal for the food and pharmaceuticals industry. Features include automatic calibration, diagnoistics and control providing repeatable, accurate results and exceptional performance, which is essential for HACCP compliance.
Main features
- Ability to analyse very low volumes of headspace, less than 1ml
- Easy to use touch screen
- 5 different test methods
- Auto calibrate and auto diagnosis
- Set tests for pass or fail
- Built in Printer
- Documentation for Quality Management Systems (IQ, OQ, PQ)
- 21CFRII Compliant
Standard Certification
Application
- Pharmaceutical Vials
- Fish
- Pharmaceutical Packaging
- Wine
- Fresh Meat、Cooked Meat
- Vegetables Salads
- Snack Foods
- Ready Meals
- Coffee Pods
Specification
Measurement range：Oxygen 0.001%-99.9%；CO2 0.1%-99.9%
Response time：3s
Sensor Type：Zirconia & Dual wavelength, Infra-red
Minimum volume of sample gas：1ml
AquaSense 7101 Water Vapor Permeation
The 7101 water vapor analyzer range utilises the sensitive and stable P2O5 sensor for absolute moisture measurement. These water vapor analyzers offer a wide measurement range of 0.002-1000 g/m²/day and precision temperature, humidity and flow control. Providing accurate and repeatable results for research and development testing of water transmission rate (wvtr) in both current and newly formulated packaging film materials and fast testing for Quality Control.
Main features
- Inexpensive and user replaceable sensor.
- The sensor continues Systech Illinois’ leadership in providing a longer lasting sensor with a lower replacement cost.
- This system runs on a full Windows® operating system enabling safe, secure operation and net- work connectivity.
- Anti-Surge prevents sensor damage due to excessive levels of water vapor – extending sensor life.
- Accurate validation obtained in just a few hours using third party certified gases. NIST traceable.
- Systech Illinois can access your instrument (with your permission) to diagnose and repair system errors without the cost and time of an on-site visit.
Standard Certification
ASTM F 1249, ASTM F3299-18, DIN 53122-2, ISO 15105-2, ISO 15106-3
Application
- Applications:Permeation Testing
- Industries:Flexible Packaging, Food, Pharmaceutical
Specification
Gas : Water Vapor
Application : Permeation
Measurement range : 0.002 to 70 g/(m2 . d). 0.02 to 1,000 g/(m2 . d). when masked
Test temperature range : 10 to 40°C (50 to 104°F)
Test RH range : 20 to 90% RH
Sample Size : 50cm2, adapters available for smaller sizes
Lyssy L80-6000 Water Vapor Permeation Analyzer
The L80 series of analyzers have been used successfully for decades in many laboratories. The L80-6000 is the latest generation of the proven L80 series, used around the world. Simple to use with a reliable testing principle and low maintenance this instrument is a cost effective solution. The Lyssy L80-6000 can measure high permeability materials using special sample cards. It is extremely quick and the more permeable the sample the shorter the measuring time. In addition to its short testing times and wide measurement range, it offers a high degree of accuracy.
Main features
- Easy to use operator interface
- Simple to operate due to the high degree of automation
- Fast and accurate test results
- Broad testing range covering low and high permeability
- Automatic equilibrium detection
- Automatic temperature control
- Easy set-up of test parameters and sample data
- Easy to use test sample holders
- Built-in printer allows for easy test documentation
- Low degree of maintenance
Standard Certification
ASTM E398-3
Application
- Applications:Permeation Testing
- Industries:Beverage, Flexible Packaging, Food, Inks & Coatings, Paper & Pulp
Specification
Gas : Water Vapor
Application : Permeation
Measurement range : 0.03 – 10,000 g/m2/day
Test temperature range : 5 to 50°C (41 to 158°F) with built-in temperature control
Humidity : 5%-60% RH
Ambient Humidity : 10-90% RH (non-condensing)
Dimensions : 400 x 400 x 350 mm
Weight : 24 kg (approx.)

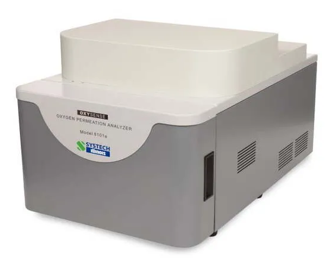

8101e OxySense® Oxygen Transmission Rate Analyzer
The OxySense 8101e is designed to be expandable and lower your testing costs. Systech Illinois is the only major developer of transmission rate test instrumentation to offer satellite expansion. The satellites can be configured to meet your precise testing needs, allowing you to cost effectively add lab capability as needed while continuing to lower your “cost per test”.
Main features
- Completely new design
- High sensitivity, wide range eMetric™ coulometric sensor
- Easy testing, just load the film and press a button to start
- Simple Windows based software control – easy to set up with Quickstart stored testing configuration settings and clear concise results presentation.
- Film loading made simple and effective with the Q-Seal™ gas free cell closure system
- Automatic relative humidity and temperature control
- “Test Condition Matrix” (TCM™) feature enabling you, with the touch of a single button, to test a sample at up to ten different conditions of temperature and relative humidity
- Expandable up to 32 cells
Standard Certification
ASTM D3985, ASTM F1307, ASTM F1927, DIN 533803-3, ISO CD 15105-2, JIS 7126
Application
- Applications:Permeation Testing
- Industries:Beverage, Flexible Packaging, Food, Inks & Coatings, Paper & Pulp
Specification
Gas : Oxygen
Application : Permeation
Controlled RH Testing Ranges : Films- Carrier and Test gas
Controlled RH Testing Ranges : Packages – Ambient or controlled by chamber
Test temperature range : 10°C to 40°C ± 0.1°C
GS6000 Headspace Analysers
The Gaspace 6000 headspace analyzers offer high levels of performance technology and operator ease to fulfill the latest industry demands for accuracy and reliability. These highly advanced instruments are equipped with integral sampling systems, unique, miniature, long-life, zirconia and infrared sensors, and microprocessor control to deliver the most accurate and repeatable performance possible.
Main features
- Easy to set up and use
- AccuFlow transducer
- Intuitive menu
- One-Touch calibration
- Set tests for pass and fail
- Lightweight and easy to move around
- USB port for diagnostic software
- Optional:external printer via RS232
- can piercing station
- 45° adaptor for can piercing station
- Protective waterproof case
- Syringes injection port capability
Standard Certification
Application
- Applications:Gas Analysis and Testing, Oxygen Headspace Testing
- Industries:Beverage, Flexible Packaging, Food
Specification
Gas : Oxygen, Carbon Dioxide
Application : Gas Flushing of Food, Headspace Analysis
Oxygen range : Autoranging from 0.001 to 100% (models GS6500 & GS6600)
Carbon dioxide range : Autoranging from 0.1 to 100% (models GS6600 & GS6700)
Response time : <5 seconds (O2), <10 seconds (CO2)
Weight : 4kg (9lbs)
Dimensions : 305W x 254D x 152H mm (13.5W x 11.5D x 5.7H inches)
Can piercing station : For analysis of rigid cans and jars
PM700 Process Oxygen Analysers
PM700 offers the best in class of high performance oxygen analysis. These highly advanced instruments incorporate user-friendly software to provide accurate and reliable results. This paramagnetic analyzer is ideal for oxygen purity measurements with autoranging from 0.01% to 99.99%. The non-depleting sensor provides years of trouble free operation.
Main features
- Paramagnetic sensor with PID temperature control for best in class performance
- Optional barometric pressure compensation for purity analysis
- Auto calibration option
- Large autoranging LED display
- Specific to oxygen
- Excellent linearity and accuracy
Standard Certification
Application
- Applications:Gas Analysis and Testing
- Industries:Industrial, Medical Devices
Specification
Gas : Oxygen
Application : Industrial Gas, Medical Gas Analysis
Measurement range : Autoranging from 0.01 to 100% Oxygen
Technology : Paramagnetic
Response Time : 90% of reading (T90) less than 6 seconds
MM500 Moisture Detector for use in process gas analysis
The EC92DIS portable oxygen analyzer can be used in hazardous areas – approved for II 1G Ex ia IIc Ga T4 – Zone 0 (ATEX). It is designed to measure oxygen levels and can detect oxygen levels as low as 1ppm, up to high percent oxygen levels and can be used on most industrial gases and atmospheres. There is no need for routine maintenance of the fuel cell, and the oxygen analyzer instrument may be easily calibrated, using ambient air or standard calibration samples.
Main features
- Unique fast purge system
- Easy calibration
- Maintenance free measuring cell
- Intrinsically safe certification
- Selectable ranges of oxygen levels % and ppm
- Powered by 2 x PP3 batteries
Standard Certification
Application
- Applications:Gas Analysis and Testing, Industrial Gas, Medical Gas Analysis, Welding
- Industries:Industrial
Specification
Gas : Moisture
Technology : Phosphorus Pentoxide
Measurement range : Autoranging from 0.01ppm to 1000ppm and equivalent in dew point
Accuracy : ±5% of reading or 0.4 ppm(v) (-110 °C to -20 °C dew point)
Response Time : 90% within 60 seconds
Acceptable gases : N2, H2, O2, Helium, Argon, CO2, Air, N2O
19 inch rack mounting option : Can be combined with any of our oxygen to create a dual gas analyzer

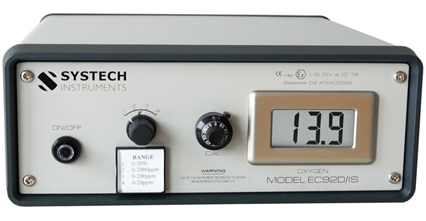

EC92DIS ATEX Portable Oxygen Analyzer
The EC92DIS portable oxygen analyzer can be used in hazardous areas – approved for II 1G Ex ia IIc Ga T4 – Zone 0 (ATEX). It is designed to measure oxygen levels and can detect oxygen levels as low as 1ppm, up to high percent oxygen levels and can be used on most industrial gases and atmospheres. There is no need for routine maintenance of the fuel cell, and the oxygen analyzer instrument may be easily calibrated, using ambient air or standard calibration samples.
Main features
- Unique fast purge system
- Easy calibration
- Maintenance free measuring cell
- Intrinsically safe certification
- Selectable ranges of oxygen levels % and ppm
- Powered by 2 x PP3 batteries
Standard Certification
Application
- Applications:Gas Analysis and Testing
- Industries:Industrial
Specification
Gas : Oxygen
Application : Intrinsically Safe
Measurement range : ppm and %
Technology : Electrochemical
ATEX Approval : 0
Power supply : 2 x PP3 dry batteries, fitted internally
Ingress protection : IP40
Dimensions : 102H x 257W x 271D mm
Approvals : ATEX II 1G Ex ia IIC Ga T4
EC91 ATEX o2 analyzers
The EC91 intrinsically safe oxygen analyzer is an online transmitter for ppm and percent oxygen measurements of gas streams in hazardous area installations. It can detect oxygen levels from as low as 1 ppm up to higher percent levels and can be used in most industrial gases and atmospheres. There is no need for routine maintenance of the fuel cell and the instrument can be easily calibrated, using ambient air or standard calibration samples.
Main features
- Maintenance free 5 year life sampling cell
- Unsurpassed safety protection
- Air calibration facility
- 3 year electronics warranty
- Certified for Zone 0
- This instrument has a 36 month warranty which covers any faulty workmanship and normal component failure relating to electronic circuit cards
Standard Certification
Application
- Applications:Gas Analysis and Testing
- Industries:Industrial
Specification
Gas : Oxygen
Measurement range : ppm and %
Technology : Electrochemical
ATEX Approval : 0
Measurement range : 6 selectable
Resolution : 0.05% of scale
Response Time : 90% of reading within 20 seconds
Ingress Protection : IP66, Nema 4X
Approvals : ATEX Ex II 1G EX ia IIC T4 Ga
EC9031 Oxygen Deficiency Monitors
The EC9031 is the most advanced, feature rich oxygen monitor in the world, offering things like; adjustable alarm contacts which give early warning of changes in oxygen levels, allowing action to be taken. Complete data event logging. The EC9031 transmits continuous oxygen concentration levels to any control data acquisition system or programmable logic controller. The EC9031 incorporates a diffusion type electrochemical sensor that does not require sample pumping, making it easy to use and calibrate. The sensor is capable of being mounted remotely from the analyzer.
Main features
- 4.7” touchscreen with data logging & graphing, event logging
- Two adjustable levels of oxygen with audible & visual alarm
- Sensor life 5 years
- Simple installation
- 3 years warranty
- High accuracy
- IP65 Wall Mounting enclosure with optional wall bracket
- Pressure compensated
- Datalog/Graphing – Oxygen, Temperature & Pressure continuously measured
- All measurements are stored with date & time
- Sensor life warning
- All user functions through touchscreen display, including alarm defeat option
- Large and clear Oxygen and system status indication
Standard Certification
Application
- Applications:Gas Analysis and Testing, Oxygen Deficiency Testing
- Industries:Beverage, Food, Industrial, Medical Devices
Specification
Gas detected: Oxygen
Measurement range : 0-30%
Technology : Electrochemical
Resolution : 0.01%
Accuracy : ±0.001%
Response Time : 90% of reading within 20 seconds
Ingress protection : IP65
Temperature : 0°C – 40°C
EC900 Process Oxygen Analyser
Brought to you by Systech Illinois, our world-leading gas, oxygen and moisture analysis brand, the EC900 series of oxygen analyzers measure levels as low as 20 ppm from ambient air in two minutes!
These highly advanced instruments incorporate user-friendly software and the highest quality sensors to provide accurate, reliable results.
Our oxygen analyzers are designed to monitor oxygen levels within most industrial gasses and atmospheres to ensure your product is fit for purpose. Unaffected by hydrocarbons or volatile atmospheres, our patented sensors are ideal for applications such as wave solder and reflow ovens. Whatever your measuring range, the EC900 series has an oxygen analyzer to suit your needs.
Main features
- Long life, maintenance-free disposable oxygen sensor
- Sturdy, reliable construction with three sensor options
- Ambient air or traceable gas calibration
- Microprocessor controlled oxygen analyzer functions
- Large, autoranging LED display
- Rapid response time
- Vibration proof
- Warranty period cover
Standard Certification
Application
Industrial gas, Glove boxes, Oxygen-controlled atmospheres of all kinds.
Specification
- EC920 oxygen analyzer: This oxygen analyzer is NEMA 4X / IP66 waterproof and weatherproof (weight 15.5KG / width 380mm / depth 160mm / height 460mm).
- EC930 oxygen analyzer: This oxygen analyzer comes with a 19 inch rack mount to house one or two oxygen analyzers (weight 9.7KG / width 484mm / depth 410mm / height 190mm).
- EC910 oxygen analyzer: A versatile panel mounted, or bench-top, oxygen analyzer (weight 7.9KG / width 237mm / depth 410mm / height 190mm).
Systech Illinois ZR800 Oxygen Analyzers
Invest in a powerful ZR800 Series Oxygen Analyzer and you’ll measure the oxygen in most industrial gas streams from 0.1ppm up to 100% volumes.
https://youtu.be/_Q7bteKmakk
Main features
- Non depleting, maintenance-free, oxygen sensors
- Ambient air or traceable gas calibration
- Microprocessor controlled oxygen analyzer functions
- Large, autoranging LED display
- Extremely fast oxygen detection response
- Unaffected by vibration or position
- Sturdy, reliable construction with three mounting options
- 24VDC version
- Panel or bench mount
- NEMA 4X / IP66 waterproof and weatherproof
- Operator interface / diagnostics
- Read-only mode available
- Diagnostic capabilities
- Fault alarms
- Sampling systems
- Bypass flowmeter
- Pressure regulator
- Sample pump
- Flow alarm
- Auto calibration
- Cartridge filter kit
- RS232 / 485
- Analog outputs
- High / low alarms
- Fault alarms
- Flow alarm
Standard Certification
Application
Industrial Gas, Ovens/Furnaces, Welding
Specification
Unsuitable gases : ammonia, carbon monoxide, combustibles, corrosive gases, halogenated hydrocarbons, halogens, hydrocarbons, hydrogen, hydrogen sulfide and sulfur- or lead-containing compounds
NB: Optional version for use with gases containing low ppm levels of hydrocarbons etc
Systech Illinois Gaspace Advance Head Space Analyzers
The Gaspace Advance oxygen (O2) and carbon dioxide (CO2) headspace gas analyzer is ideal for the food and pharmaceuticals industry. Features include automatic calibration, diagnoistics and control providing repeatable, accurate results and exceptional performance, which is essential for HACCP compliance. Its large buttons and clear display ensures testing is simple, errors are eliminated and no special operator training is required, maximising production efficiency.
https://youtu.be/cUgwSm334FA
Main features
- Easy to use touch screen
- 5 different test methods
- Easy to set up and use
- Intuitive menu
- Auto calibrate
- Auto diagnosis
- Set tests for pass or fail
- Printer
- Computer software
- Waterproof case
- Can piercing station
- 45° Adaptor for use with the can piercing station
- Syringes injection port capability
- Microprocessor controlled touchscreen
- Protective waterproof case
- Can perform the Nitrogen gas concentration via a calculation
Standard Certification
Application
Gaspace Advance Micro MAP analyzer for Carbon dioxide and Oxygen headspace gas. Fast and accurate, for testing in gas flushed food and pharmaceutical products. Gas Analysis and Testing, Oxygen Headspace Testing.
Specification
