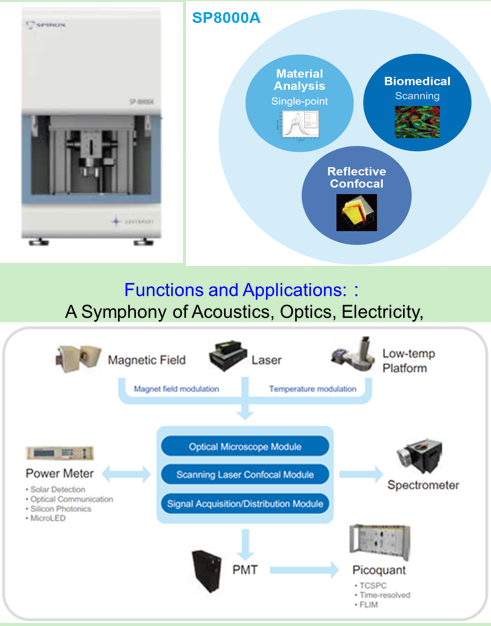

Southport founding team brought together talents from  optics, materials, physics, and information, developing novel optical design concepts in optical engineering.

JadeMat

JadeMat is optimal for nanomaterial and perovskite material optical inspection. It performs well for major optical inspections, such as high-resolution
grain imaging, non-destructive film-forming.
Features
  • High-speed, high-resolution spectrum mapping
  • Fully automatic optical switching
  • Accompanying with related module for autofocus
  • Microscopic hole diameter and taper analysis
  • User-friendly analyzing software: peak wavelength, peak intensity, FWHM, selected band imaging, and spectral information statistics
Application
Expansion Module
  • Digital optics OAM module
  • Magnetic field module
  • Motorized XY Stage
  • Temperature control module
  • Electrical inspectionmodule
  • Two-photon module
  • Long working distance objective
  • FLIM
Specification
Max. Resolution 4096 x4096
Frame rate 1 fps( @512 x 512)
Laser wavelength 266~1064nm
Detector PMT

JadeSurf-Transparent

JadeSurf-Transparent is the best high-speed inspection tool for the surface and internal structure of transparent materials. It distinguishes the interface that is not visible by the traditional AOI system.
Features
  • Able to inspect surface scratches and internal defects of transparent material
  • High-rssolution white light image module: Bright field / dark field
  • TCP/IP communication interface
  • 3rd party Development Kit
Application
Expansion Module
  • Motorized nosepiece module
  • Autofocus module
  • Long working distance objective
Specification
Max. Resolution 1024 x 1024
Frame Rate  22 fps( @512 x 512)
3D display resolution 1nm
Laser wavelength 405nm / 638nm
Field of View 5mm ~ 16μm

JadeBio-Confocal

Upgrade epi-fluorescent microscope to a confocal microscope for 3D slice function with high imaging speed and high-definition images instead of relying on resourences of the core facility center.
Features
  • Suitable for various main stream microscope
  • Can be converted to independent modular system
  • High-speed and high-resolution imaging
  • 3D optical slice fluorescence image
  • Support various types of lasers
Application
Expansion Module
  • Motorized XY Stage
  • Raman spectroscopy
  • Two-Photon imaging
  • FLIM inspection module
Specification
Max. Resolution 4096 x4096
Frame Rate  1 fps( @512 x 512)
Laser wavelength 405nm/488nm/532nm/640nm
Detectors PMT / GaAsP
Z Scanning speed 10 layers/sec

Wide Field Microscope Module

The easy-to-install module relieves space limitations. Suitable for various optical/non-optical systems without microscopic images.
Features
  • Bright field microscope
  • Kohler illumination
  • Suitable for objective lenses of mainstream brands
  • Laser introduction port and expands the field of research and application
Specification
Light source ＞1W Adjustable Light,Color R/G/B/W
Camera 5MP,Color CMOS
FOV ＞600μm at 20x objective

PMT Detector

PMT Detector is the best signal detector for the ultra-low light source, covering the maximum dynamic range available for PMT.

Features
  • Large sensing area
  • Multile wavelength detection ranges
  • Well packaged design, shielding external noise
Specification
Rise Time  0.6ns
IRF/td> <160ps
Connector SMA
